Cosine similarity: from the unit circle to RAG

Introduction

This article talks about the science behind RAG, i.e. Retrieval Augmented Generation. RAG is a powerful method to augment LLM context with relevant data.

Topics

• Recap of what learning means in a neural network
• Vectors and vector operations like addition, subtraction and the dot product
• How words can be represented as vectors, and what the same operations mean in this domain
• Expanding this idea towards sentences
• Finally, a couple of demos seeing this in practice

0. The big picture: how embeddings are learned

The vectors this whole post compares — the ones we'll judge by the angle between them — are learned. Each token is mapped to an embedding vector (just a row looked up in a table), pushed forward through a fully-connected network to a prediction ŷ, and a loss measures how wrong it is against the target y. Backpropagation then sends gradients ∂ℒ/∂W back through every layer — and crucially, back into the embedding table itself. After millions of updates, words used in similar contexts drift to similar vectors. That is why cosine between them ends up meaning something.

The rest of this notebook earns that intuition from the ground up — starting with what a vector even is, then what the cosine of the angle between two of them means, and finally seeing the learned word vectors above in action.

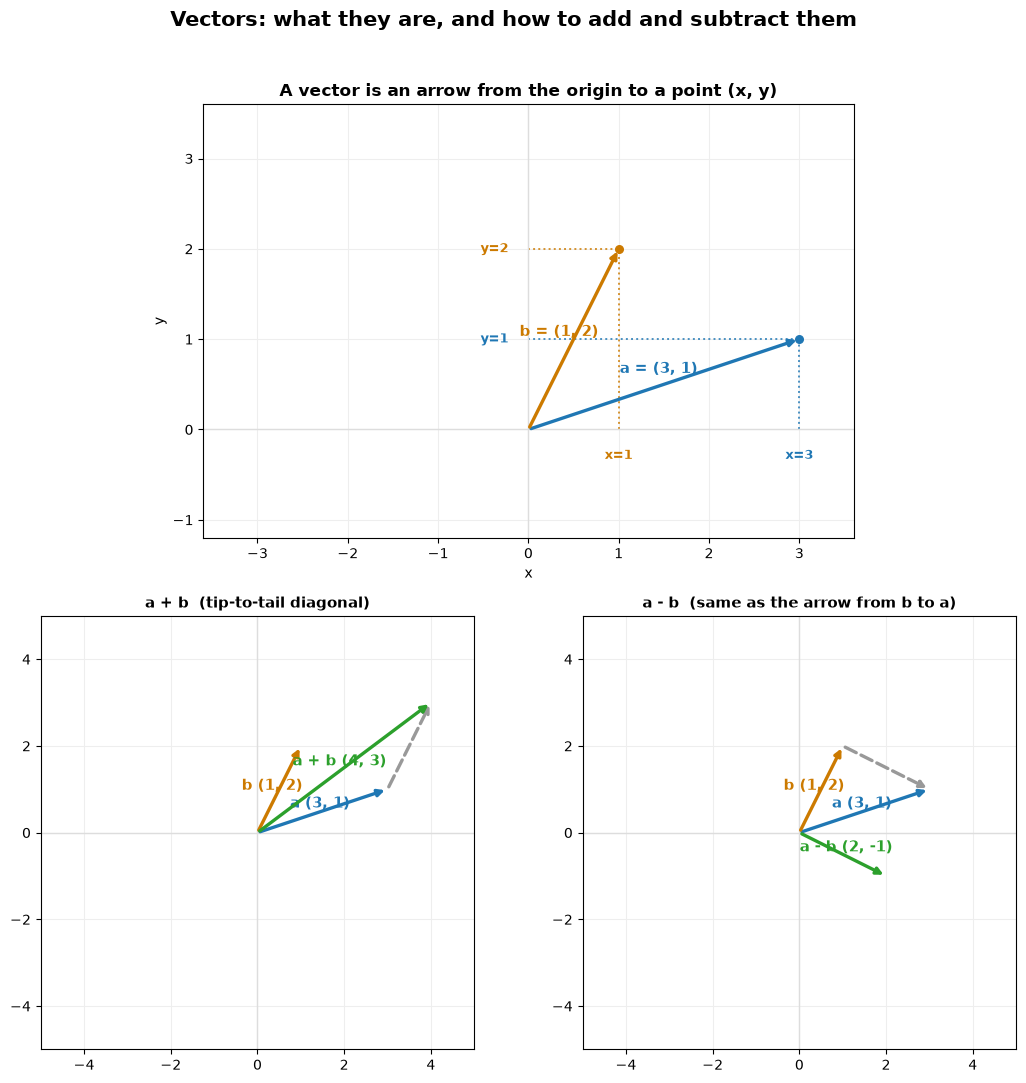

1. Vectors: arrows you can add and subtract

A vector is just an arrow from the origin to a point (x, y). Adding two vectors is tip-to-tail (the diagonal of the parallelogram); subtracting a − b is the arrow that points from b to a. That's the entire mechanical vocabulary we need.

from scripts.vector_add_subtract import build_figure

fig = build_figure()
fig

2. Cosine starts on the unit circle

Forget vectors for a second. For a point on the unit circle at angle θ, the cosine is simply its x-coordinate. It starts at +1 (0°, pointing right), falls through 0 (90°, straight up), to −1 (180°, pointing left).

C_VEC, C_COS, C_DROP = "#1f77b4", "#2ca02c", "#999999"
HIGHLIGHT = 35                       # degrees, the worked example
MARKS = list(range(0, 360, 45))      # 0,45,...,315

from scripts.unit_circle_cosine import build_figure
fig = build_figure()
fig   # shows inline

Move the pointer around the circle: the blue vector has length 1, and its shadow on the x-axis — the thick green vector — is cos θ. Watch the readout cross zero at 90° and flip negative past it.

That bounded range [−1, +1] is the whole reason cosine makes a convenient similarity score: +1 = same direction, 0 = perpendicular, −1 = opposite.

3. Words become vectors

Word embeddings (word2vec) place each word at a point in a high-dimensional space so that directions carry meaning. Here each word is a 300-dimensional vector — exactly the kind of vector the network in section 0 learns.

from scripts.local_vectors import e, nearest, analogy

e("king").shape

(300,)

The famous result king − man + woman ≈ queen isn't an equation — it's a cosine nearest-neighbour search around the computed point. "queen" is simply the highest-cosine neighbour of king − man + woman:

nearest(e("king") - e("man") + e("woman"))

[('king',         0.845),
 ('queen',        0.730),
 ('monarch',      0.645),
 ('princess',     0.616),
 ('crown_prince', 0.582)]

The analogy helper does the same arithmetic but drops the input words from the results, so the intended answer rises to the top:

analogy("man", "king", "woman")   # man:king :: woman:?

[('queen',        0.730),
 ('monarch',      0.645),
 ('princess',     0.616),
 ('crown_prince', 0.578),
 ('prince',       0.578)]

It works for morphology and tense, too

analogy("walk", "walking", "swim")

[('swimming', 0.863),
 ('swam',     0.721),
 ('swims',    0.705),
 ('swimmers', 0.690),
 ('paddling', 0.664)]

analogy("small", "smaller", "big")

[('bigger',  0.804),
 ('larger',  0.629),
 ('Bigger',  0.587),
 ('biggest', 0.524),
 ('huge',     0.520)]

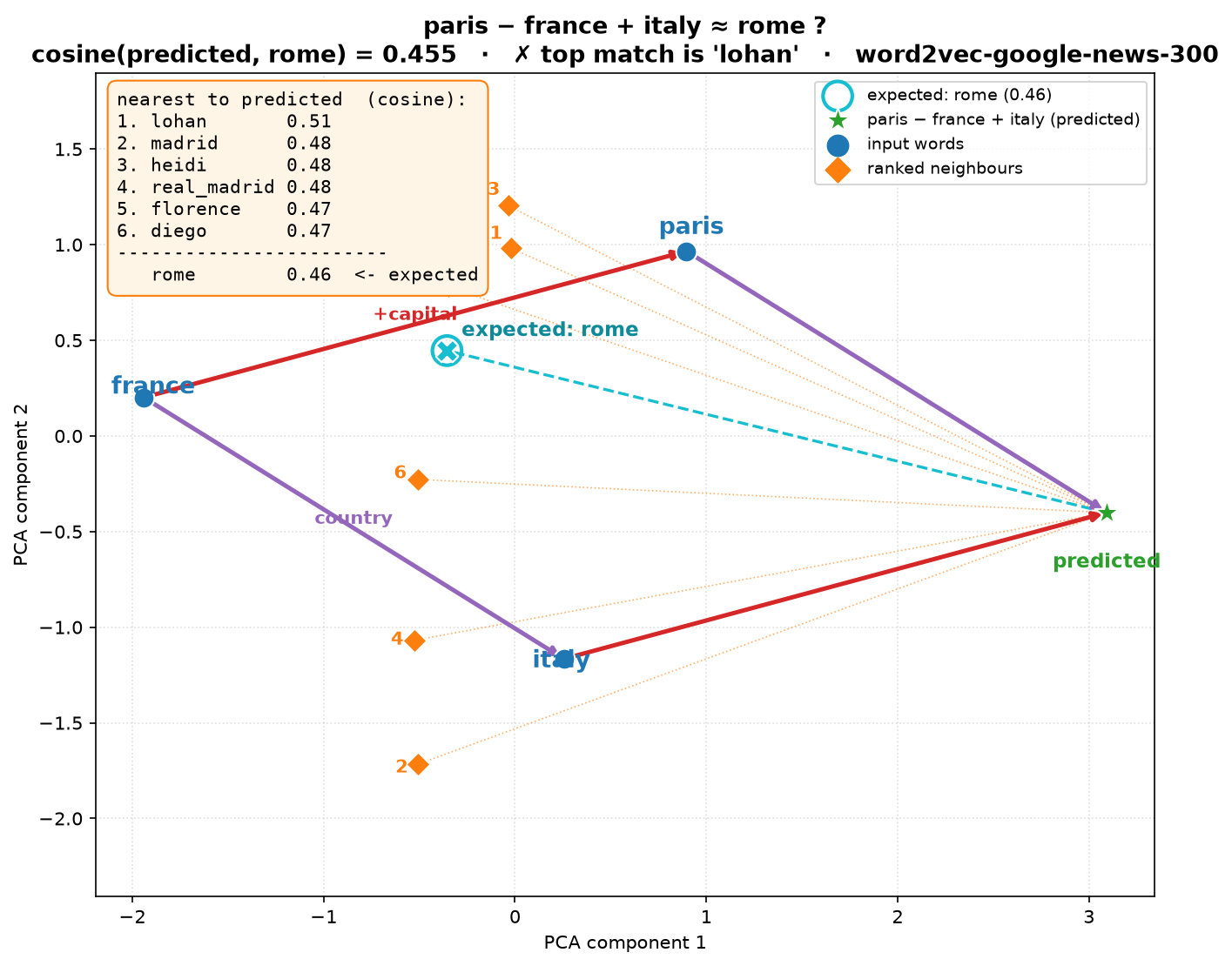

4. Paris and Rome — when the geometry is off

paris − france + italy should land on rome. Same arithmetic, same cosine search — but the top neighbour is lohan: the "Paris" vector is contaminated by Paris Hilton.

analogy("paris", "france", "rome")

[('italy',    0.495),
 ('european', 0.489),
 ('italian',  0.479),
 ('england',  0.469),
 ('italians', 0.464)]

analogy("italy", "rome", "france")

[('paris',   0.435),
 ('albert',  0.419),
 ('toronto', 0.399),
 ('french',  0.397),
 ('donnie',  0.389)]

nearest(e("lohan"))

[('lohan',         1.000),
 ('lindsay_lohan', 0.698),
 ('britney',       0.697),
 ('heidi',         0.681),
 ('charlie_sheen', 0.673)]

A word is exactly cosine 1.0 with itself — and its neighbours reveal the company it keeps. "lohan" sits among celebrities, which is exactly why it hijacked the Paris analogy.

5. Sentences become vectors — the RAG retrieval step

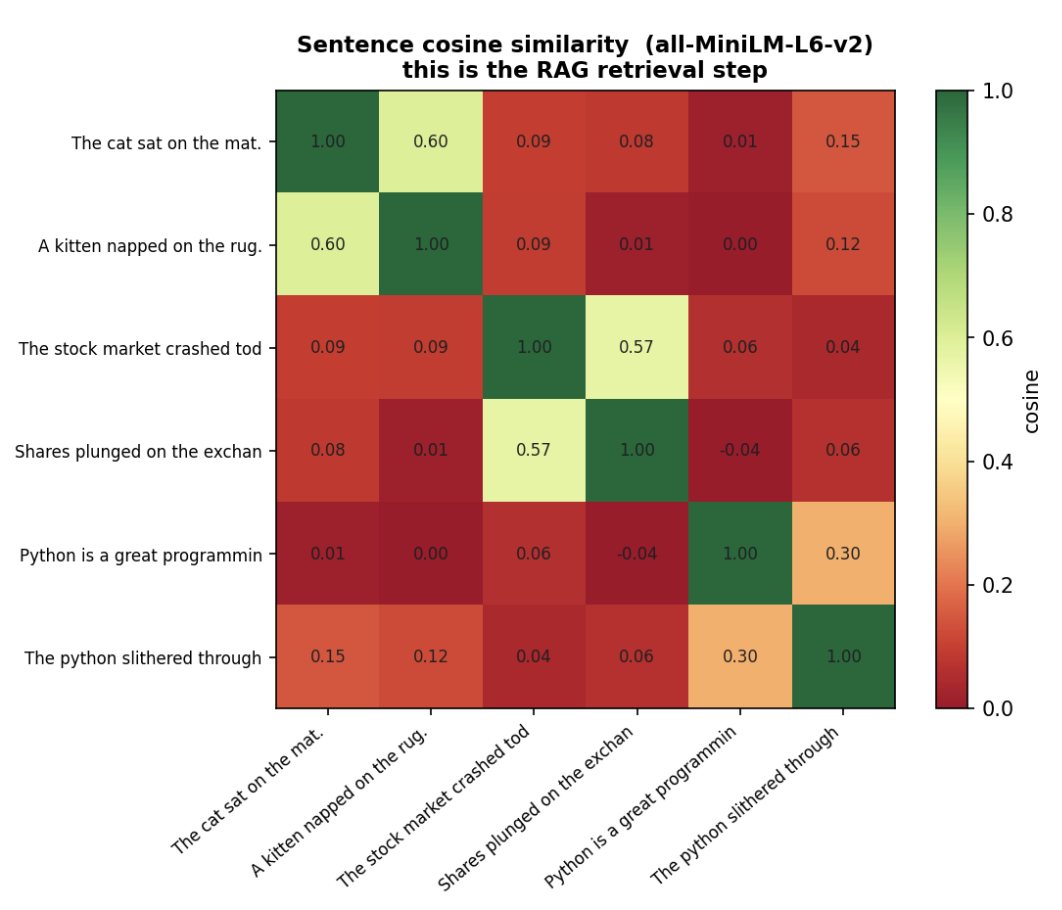

Words were the previous rung; the next is whole sentences. A trained encoder (here all-MiniLM-L6-v2) maps each sentence to a single vector, and we score every pair by the cosine of the angle between them. The heatmap below is exactly that pairwise cosine matrix — the diagonal is 1.00 (every sentence is identical to itself), and the bright off-diagonal blocks are sentences that mean the same thing even when they share almost no words.

6. Try it: search a video library by cosine

Here is the whole post in one widget. Each video's title + description is turned into a TF-IDF vector (one weight per word); your query becomes a vector the same way; and the results are ranked by the cosine of the angle between them — all in your browser, no server. Try machine learning, bake bread, beginner workout, or cheap travel japan and watch the ranking reshuffle.

Typing runs the bag-of-words version, so it matches on shared words, not meaning: type fix a leaking faucet and you get nothing, because the right video says "dripping tap" and "worn washer" — no word in common. Now open the ✨ Semantic suggestions dropdown. Those ten queries were each embedded once, offline, with BGE-M3 (the same encoder real RAG systems use); the page ships only the resulting 1024-d vectors. Pick "how do I fix a leaky faucet" and the identical cosine — now over learned embeddings instead of word counts — floats the plumbing videos ("Clear a Slow Drain", "Stop a Dripping Tap") to the top. Same geometry, better vectors.

Recap

• Learning in a neural network — training nudges an embedding table via backpropagation until words used in similar contexts land on similar vectors.
• Vectors and their operations — arrows you can add and subtract, and whose dot product (normalised) is the cosine of the angle between them.
• Words as vectors — word2vec places words so directions carry meaning, and the same arithmetic does analogies like king − man + woman ≈ queen.
• Sentences as vectors — a trained encoder maps whole sentences to vectors, so cosine flags pairs that mean the same thing even with no shared words.
• Demos in practice — the video search and the sentence heatmap show this cosine ranking running live, which is exactly the retrieval step behind RAG.
